PPS CNC Machining
PPS CNC Machining for Heat and Chemical Resistant Plastic Parts

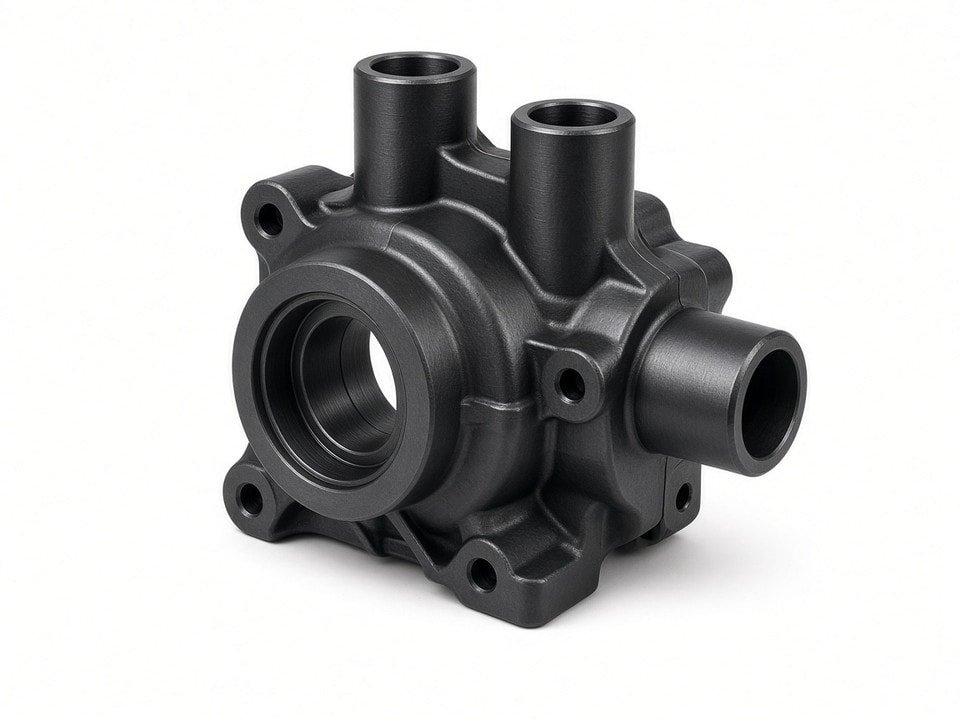

We machine polyphenylene sulfide (PPS) components to your drawings for applications where standard engineering plastics lose dimensional stability or chemical resistance. Most of our PPS work covers sealing parts, insulators, valve components, pump parts, and fixtures that run at elevated temperature or near aggressive fluids.
Before we quote, we review the material specification, the operating environment, and the features that control fit or function. That review determines whether PPS is the right material and how we should machine it.
Understanding PPS Before You Specify It
PPS is a semi-crystalline thermoplastic. It is typically chosen for its heat resistance, its stability under load at temperature, and its resistance to many chemicals. It is supplied in several forms, and the form changes how the part behaves on the machine.
Datasheet values such as continuous service temperature, chemical resistance, and moisture behavior depend on the resin system, filler content, and processing history of the stock. We verify the exact grade with you before production. We do not treat general PPS characteristics as the finished-part performance of your component.
Notes on Unfilled PPS
Unfilled PPS is tougher to machine than its stiffness suggests. It can be notch sensitive, so sharp internal corners and abrupt section changes create stress points during machining and in service. We design fixturing and tool paths around those features.
Grades, Reinforcement, and What They Change in Machining
When we review a PPS drawing, we look at four things first: the base grade, the reinforcement type and content, the stock form (bar, rod, plate, or molded blank), and whether the supplier has annealed or stress relieved the material.
Unfilled Grades
Often machine more cleanly, but need more care in fixturing and in handling thin sections. Notch sensitivity makes radii and section transitions important.
Glass-Fiber Grades
Stiffer and more dimensionally stable under temperature change. Abrasive, so they can produce a rougher bore and faster carbide tool wear if parameters are off.
Mineral-Filled Grades
Sit between unfilled and glass-filled behavior. Machinability varies by supplier, so we confirm the specific material before setting cutting conditions.
If your application requires a specific grade with a known ASTM or ISO reference, send it with the drawing. If you are still choosing a grade, we can discuss machinability and fixture requirements for your candidates, while final material selection and performance verification remain with your engineering team.
Machining Factors That Affect PPS Parts
PPS does not behave like aluminum or steel on the machine. Heat, clamping, thermal expansion, and chip management each need a deliberate plan.
Heat Control
Dull tools or excessive feed rates can soften the surface, causing smearing, melt marks, and poor finish. We use sharp tooling with suitable rake geometry and check edge quality after every tool change on critical features.
Clamping Pressure
Fixtures that pinch thin walls or flanges can distort the part. For bushings, sleeves, and rings, we plan clamping surfaces and support, and separate roughing from finishing when tight tolerances require it.
Thermal Expansion
PPS moves more than metal with temperature, so results depend on measurement conditions. Please state the measurement temperature and the functional dimensions that matter most.
Coolant and Chips
Some parts require dry or air-blast cutting, others run with coolant. The choice depends on grade, feature, and any chemical exposure requirement, and we confirm it with you for sensitive environments.
Our Equipment for PPS Components
We select the process by part geometry and volume, using the same CNC platforms we run for other engineering plastics and metals. Choose a process below to see how we apply it to PPS.
CNC turning for rods, bushings, and sleeves
Most PPS round parts start from bar or rod stock and are turned on our CNC lathes. Where the drawing allows, we machine concentric bores, outside diameters, grooves, and face features in a single setup. Concentricity and bore finish are checked on our concentricity measuring instrument.
Turn-mill machining for combined features
Parts that need flats, cross holes, slots, or off-axis features alongside turned geometry run on our turn-mill machines. Keeping these operations in one setup reduces handling and repositioning, which helps when clamping distortion is a concern.
Milling for brackets, housings, and insulators
Our 3-axis CNC machining centers handle plates, blocks, and housings. For parts with features on several faces, we use 4-axis and 5-axis equipment to reduce setups. Hole patterns and pocket depths are verified with optical measuring systems and CMM where the drawing requires 3D evaluation.
Swiss-type machining for small and slender parts
Small-diameter PPS components with long, slender sections suit Swiss-type lathes, because the guide bushing supports the stock close to the cut. This reduces deflection and helps keep small diameters consistent along the length. We run 5-axis, 6-axis, and other Swiss-type lathes depending on complexity.
Gang-type and automatic turning for repeat production
Once a PPS design is stable, we move repeat orders to gang-type or automatic lathes where the process allows. This supports consistent cycle times and reduces lot-to-lot variation, which matters for customers who qualify a part once and reorder it.
Inspection that matches plastic part behavior
Routine checks use digital calipers, micrometers, height gauges, pin gauges, and thread gauges. Detailed evaluation uses our CMM, optical measuring systems, surface roughness tester, and concentricity measuring instrument. We record measurement conditions where they affect results and can share inspection reports against the dimensions you specify.
Is PPS Machining Right for Your Part?
PPS is a strong option when a part must keep its geometry at elevated temperature, resist a chemical environment, or maintain electrical insulation under heat. Tolerance feasibility is the main question we answer. Achievable tolerance depends on geometry, wall thickness, stock condition, and whether the feature is stable under temperature change.
We review each critical dimension individually and state where we see risk, rather than applying one blanket tolerance across the drawing.
Often a good fit when
- Geometry must hold at elevated temperature.
- The part sees a chemical environment or cleaning process.
- Electrical insulation is required under heat.
Often less suitable when
- Loads are high enough to require metal.
- The part must absorb impact without notch sensitivity.
- Temperature and fluid exposure fall within the range of lower-cost plastics.
We will say so during review if a different material looks more practical.
Quality and Traceability
Our quality management is certified to ISO 9001, ISO 13485, AS9100D, ISO 14001, and IATF 16949. The applicable scope depends on the certification and the customer requirement, so we confirm which system governs your order before production begins.
ISO 9001
Quality management
ISO 13485
Medical device quality
AS9100D
Aerospace quality
For parts serving a regulated or qualified supply chain, we review traceability, lot identification, and inspection documentation early. These requirements shape how we purchase stock, record material lots, and report results, so we settle them before the first article.
Send Your PPS Requirements for Technical Review
To quote PPS parts accurately, we need the following. Send them with your inquiry, and we will reply with a technical review of material suitability, machining approach, and any drawing items to clarify before quotation.
- Drawing in PDF or STEP format, with critical dimensions and tolerances marked
- Material specification, including grade, reinforcement type, and supplier if known
- Operating environment: temperature range, chemical exposure, and any cleaning or sterilization process
- Expected annual volume and whether the order is prototype, repeat, or production
- Inspection requirements, such as first article inspection, report format, or material certificates
- Functional requirements that affect how dimensions should be measured
