CNC machining for nickel-based alloys

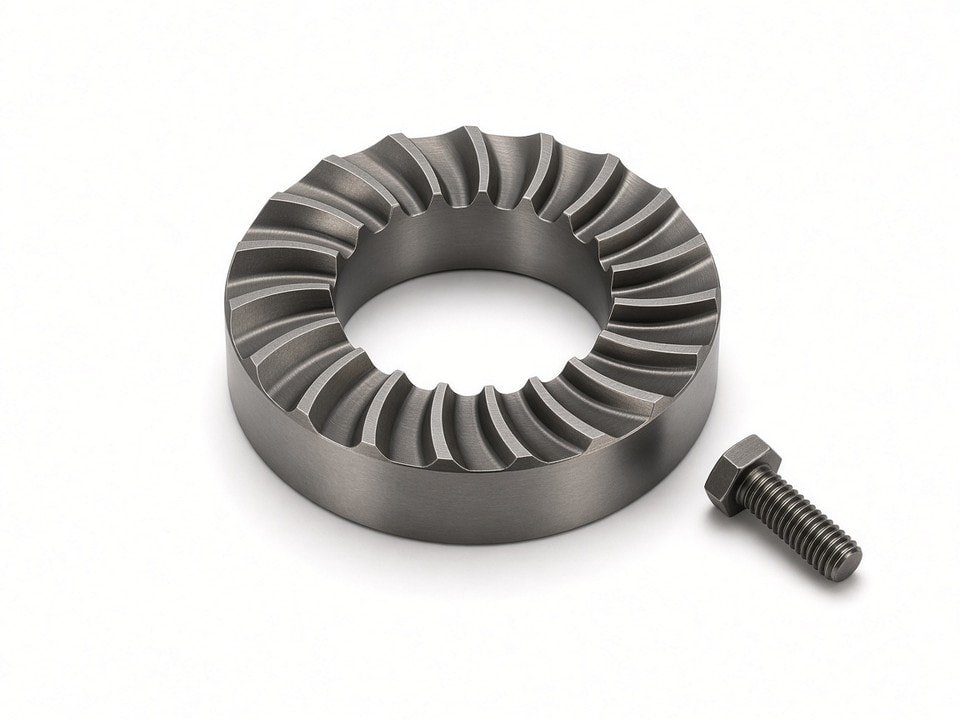

Inconel 718 CNC Machining for Drawing-Based Parts
Inconel 718 parts often arrive with tightly defined material conditions, heat-treatment sequences, inspection requirements, and documentation needs. We review these together with your drawing before we confirm whether the project fits our machining capabilities and can be quoted.
Send us the part geometry, material specification and condition, post-machining operations, inspection criteria, and order quantity. We will identify open technical questions and confirm the proposed manufacturing route before proceeding.
Start with the material specification and condition
“Inconel 718” alone does not define a production route. The governing material standard, product form, supplied condition, and any required heat treatment all affect how a part is machined and inspected. We ask customers to state these requirements in the drawing or procurement specification rather than assume a standard condition.
Please clarify, where applicable:
- The customer-approved material standard and grade designation
- Product form and required material condition at delivery
- Whether machining takes place before or after heat treatment
- Any aging, solution treatment, or other process requirements
- Required material test reports, lot identification, or traceability records
We do not list heat treatment as an in-house capability. If your project requires it, we will confirm the approved process route, supplier requirements, documentation, and responsibility for that operation before we quote.
Machining challenges we review before quotation
Inconel 718 is a precipitation-strengthened nickel-based alloy. Its strength and work-hardening behavior make machining demanding, particularly on thin walls, deep features, small radii, and long tool engagements. Heat generation, tool wear, and cutting forces can also influence surface condition and dimensional stability, so we evaluate part geometry and material condition together during process planning.
Geometry risks
- Thin sections, long unsupported lengths, and slender turned profiles
- Deep pockets, narrow slots, and restricted tool access
- Close-positioned holes, threads, and intersecting features
Control requirements
- Datum relationships and critical concentricity or positional requirements
- Surface finish requirements and areas that need specific inspection
Strategy, workholding, operation sequence, and inspection points are set against the actual drawing. We do not apply a blanket tolerance or performance claim to Inconel 718 parts; achievable requirements are reviewed and confirmed for each project.
CNC processes available for project review
Our listed equipment covers several processes that may suit different Inconel 718 geometries. Equipment availability alone does not confirm material suitability, capacity, or a particular tolerance. We assess those points against the part, required condition, schedule, and quantity.
| Process | Listed equipment | Potential part features |
|---|---|---|
| CNC milling | 25 three-axis machines, 1 four-axis machine, and 8 5-axis CNC machines | Housings, brackets, mounting features, and multi-sided profiles |
| CNC turning | 43 CNC lathes | Shafts, sleeves, bushings, and rotational features |
| Turn-mill machining | 15 turn-mill machines | Parts combining turned diameters with milled flats, holes, or other features |
| Swiss-type machining | 10 Swiss-type lathes across listed configurations | Small-diameter or slender components, subject to machine and material review |
| Automatic turning | 30 automatic lathes | Small turned parts, subject to project requirements |
For each inquiry, we check whether a suitable machine and process route are available. When a part combines milling, turning, or turn-mill work, we consider how the required features, datums, and inspection approach fit together.
Selecting a machining route for your part
The best process depends on geometry, material condition, tolerance scheme, and volume, not on the alloy designation alone. Select a part type below to see how we approach it.
CNC turning
We review the diameter-to-length relationship, critical journals, concentricity, threads, and required finish to assess CNC turning for shafts, sleeves, and bushings.
CNC milling
We consider CNC milling based on access, datums, workholding, and the number of setups required for prismatic parts and multi-sided features.
Turn-mill machining
Turn-mill machining may be worth evaluating when a part combines rotational and milled features and the geometry and production plan support it.
Swiss-type and automatic turning
We review Swiss-type machining where part dimensions, feature details, and material requirements are compatible with the listed equipment. Automatic turning is considered for small turned parts, subject to project requirements.
Prototype and repeat orders
We assess the drawing, quantity, inspection burden, and repeat-order expectations together. The suitable route depends on the individual project.
For all routes, we confirm that the specified material, condition, inspection requirements, and schedule can be addressed before finalizing a quotation.
Dimensional control and inspection planning
The inspection plan should reflect the drawing’s critical characteristics, not only the overall part dimensions. Before production is approved, we review the specified datums, geometric tolerances, thread requirements, surface finish, and any customer-defined inspection records.
The appropriate method depends on the characteristic, tolerance, geometry, and inspection criteria. Please identify any required report format, sampling plan, first-article documentation, or approval process in your RFQ. We will confirm what can be supported for the specific order.
Listed inspection resources
- A coordinate measuring machine for dimensional and geometric inspection
- Five optical measuring systems for profile, hole position, and dimensional checks
- Height measuring instruments, height gauges, micrometers, and dimensional gauges
- A concentricity measuring instrument and surface roughness tester
- Thread plug and ring gauges, plus pin gauges for applicable features
Managing distortion and feature relationships
Dimensional stability can be a concern when a component combines thin walls, uneven material removal, long spans, or demanding feature relationships. Heat-treatment sequence and the condition in which the material is machined may also affect the process plan.
We review the drawing for risk areas and discuss the intended sequence before production. Depending on the part and customer requirements, this may include how the component is supported during machining, which features serve as datums, when critical dimensions are measured, and whether intermediate or final inspection is required.
Any proposed sequence must be agreed against the governing specification. We do not assume a heat-treatment route or promise distortion outcomes without project-specific review.
Material traceability and quality requirements
For regulated or customer-controlled projects, traceability expectations should be set before the order is placed. Tell us which material source or approval list applies and which records must accompany the parts. We will confirm material availability, documentation, and the proposed record flow before accepting those requirements into the quotation.
Certified quality management systems
Our quality management systems are certified to ISO 9001, ISO 13485, AS9100D, ISO 14001, and IATF 16949. Certification scope and applicability must be verified for the specific product and customer requirements.
Aerospace-related projects
We confirm the customer-approved material standard, required supplier qualifications, and any applicable source or process approvals. A certification statement alone does not establish project-specific approval.
What to include in an RFQ
A complete inquiry helps us assess feasibility and avoids assumptions in the quotation. Please provide the following with your request.
- 1 A current drawing or 3D model, including revision level
- 2 The Inconel 718 material standard, product form, and required condition
- 3 Heat-treatment requirements and the required condition at delivery
- 4 Critical dimensions, geometric tolerances, and surface finish requirements
- 5 Inspection standards, reports, traceability records, and approval requirements
- 6 Prototype or production quantity, expected repeat demand, and requested delivery schedule
For aerospace supply chain projects, include the customer-approved material standard and any required supplier or process qualifications. We will review these before confirming whether the project can be quoted.
Request an Inconel 718 machining review
Send us your drawing, material condition, inspection standard, and project quantity. We will review the information and follow up on feasibility, documentation, and any points that need clarification before quotation.
- Drawing or 3D model with revision level
- Material standard, product form, and condition
- Inspection criteria and traceability requirements
- Project quantity and delivery schedule
